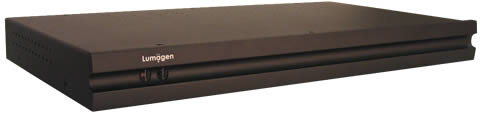

Lumagen Radiance XS3D video processor
The Lumagen Radiance XS3D is a high-end scaler certified ISF (Imaging Science
Foundation) with 10 video / 11 audio inputs and advanced settings of
video calibration (CMS).
Download: Full product datasheet
Inputs
Ten video inputs:
- 4 HDMI 1.3 (SD/HD)
- 2 Component (SD/HD)
- 2 Svideo
- 2 Composite
Eleven audio inputs:
- 4 HDMI, 2 stereo, 2 optical and 3 COAX
Outputs
- Two HDMI 1.3 outputs
- One COAX audio output
ISFccc / ISF certification
Key Features
- Supports complete processing of 2D or 3D sources
- 10-bit processing
- Proprietary Lumagen “no-ring” scaling
- Each input has 4 user configuration memories
- Each memory has 8 resolution submemories
- 2:2, 3:2 and 3:3 pull-down for SD/HD film sources
- Per-pixel SD/HD video de-interlacing
- Adaptive diagonal filtering
- MPEG mosquito and block artifact reduction
- Temporal noise reduction for SD/HD sources
- Output resolution from 480p to 1080p, plus 1080i
- User programmable non-linear-stretch (NLS) mode
- 4:3, LBOX, 16:9, 1.85, 2.35 and NLS input aspect ratios
- Programmable output aspect ratio from 1.33 to 2.50
- Extensive support for anamorphic lenses
- Automatic detection for NTSC, PAL and SECAM
- Extensive suite of test patterns
- Parametric grayscale calibration
- Parametric Gamma calibration
- CMS system with 3D color lookup table
- Programmable input/output color-space
- Y/C-delay calibration
- User-adjustable image enhancement
- CUE and ICP filtering
- Eight channel audio to 192 kHz
- IR and RS232 control inputs
- RS232 control output
- LVTTL IR format command input
- Universal power supply
- Power consumption 18 Watts
- Optional rack mounting ears
- Optional SDI inputs
The RadianceXS3D is available now for a suggested price of £2700 (inc. UK VAT).
Please phone us or email for more information.
|
